RF WAVEGUIDE by RF CONNECTOR HOUSE

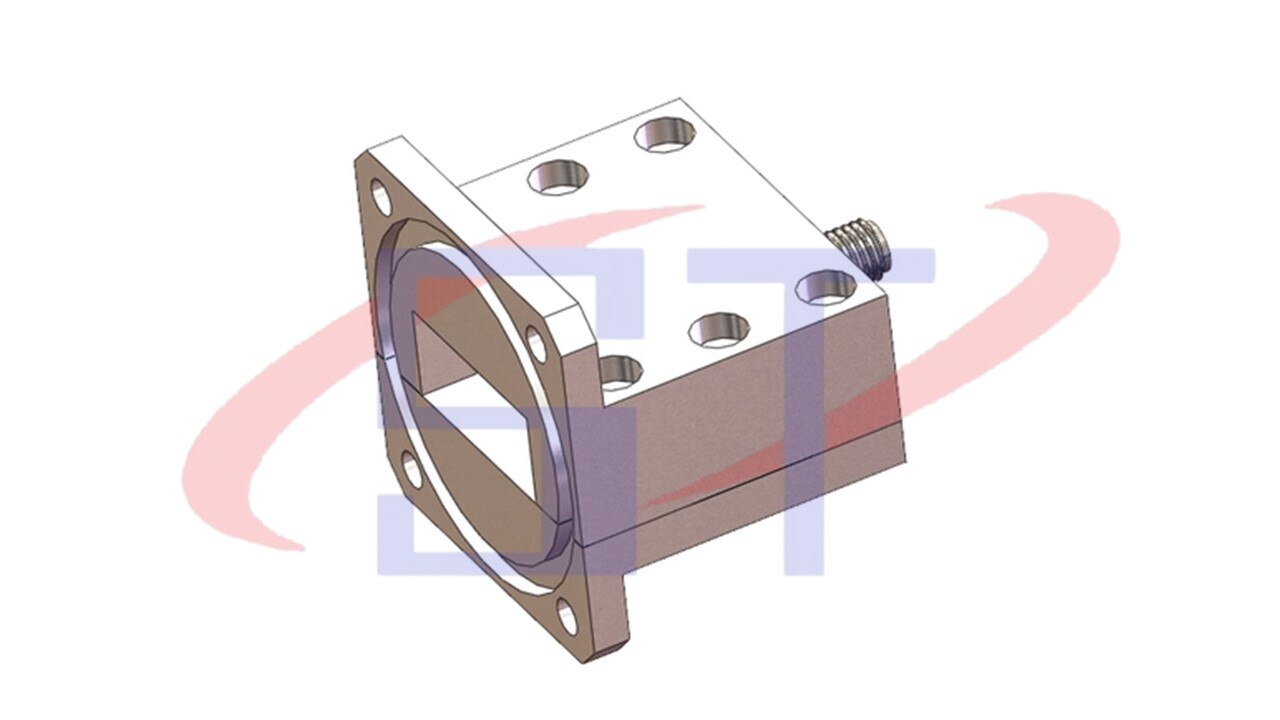

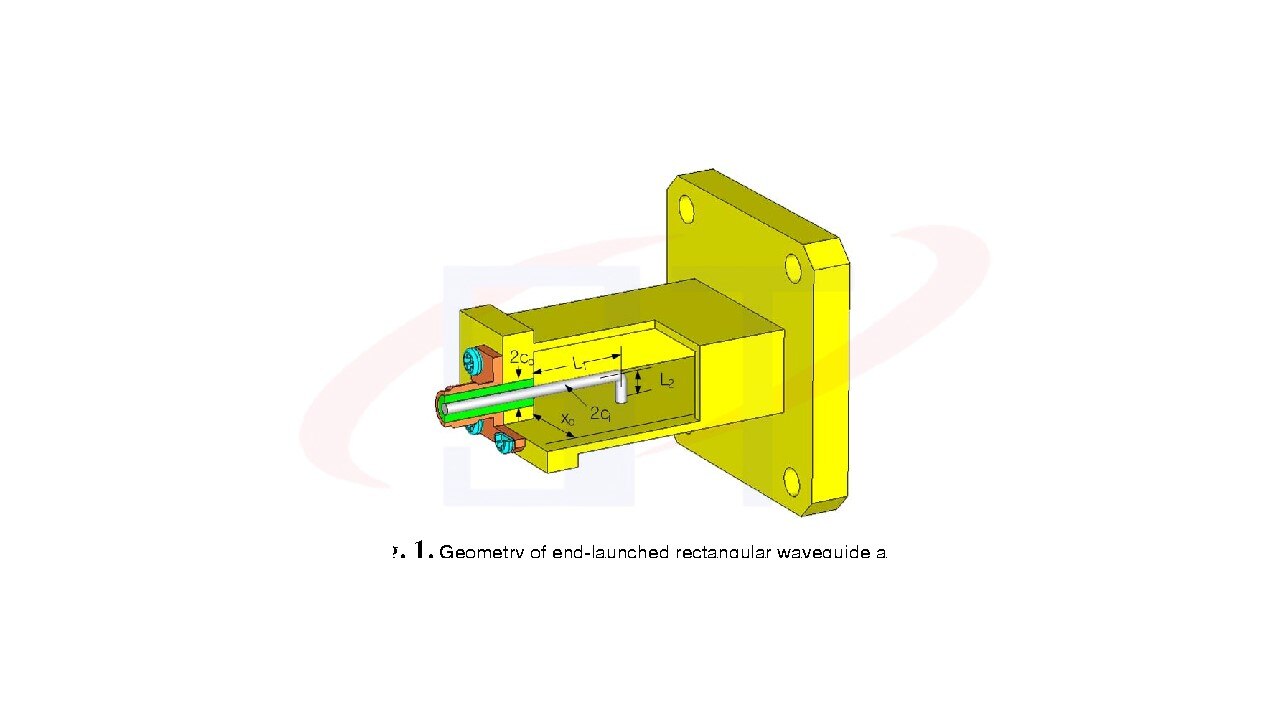

WR62 Waveguide To TNC female Coaxial Adapters (END LAUNCH)
INR 14000 INR 16000
Check On
Enquire
Description
1.1 Waveguide type WR62 1.2 Connector type TNC Female 1.3 Flange type FBP140 (Cover) 1.4 Material Aluminum 3A21 1.5 Inside Finish Silver Plating 1.6 Outside Finish Anticorrosion grey paint 1.7 Temperature range -20°C ~ +70°C1.8 Hole Sizes M4 Threads 2.0 Electrical Specifications 2.1 Frequency range 17-18 GHz 2.2 VSWR (Max) 1.50 2.3 Max. Insertion loss 0.25 dB 2.4 Power Handing 150 W (CW) 400 W (Peak)
Keywords
CW•Max•Peak•VSWR•Cover•400 W•17-18 GHz•M4 Threads•END LAUNCH•8 Hole Sizes•Inside Finish•Outside Finish•WR62 Waveguide•Insertion loss•Silver Plating•2.4 Power Handing•2.1 Frequency range•1.7 Temperature range•1.3 Flange type FBP140•1.1 Waveguide type WR62•female Coaxial Adapters•Anticorrosion grey paint•1.4 Material Aluminum 3A21•2.0 Electrical Specifications•1.2 Connector type TNC Female
