Description

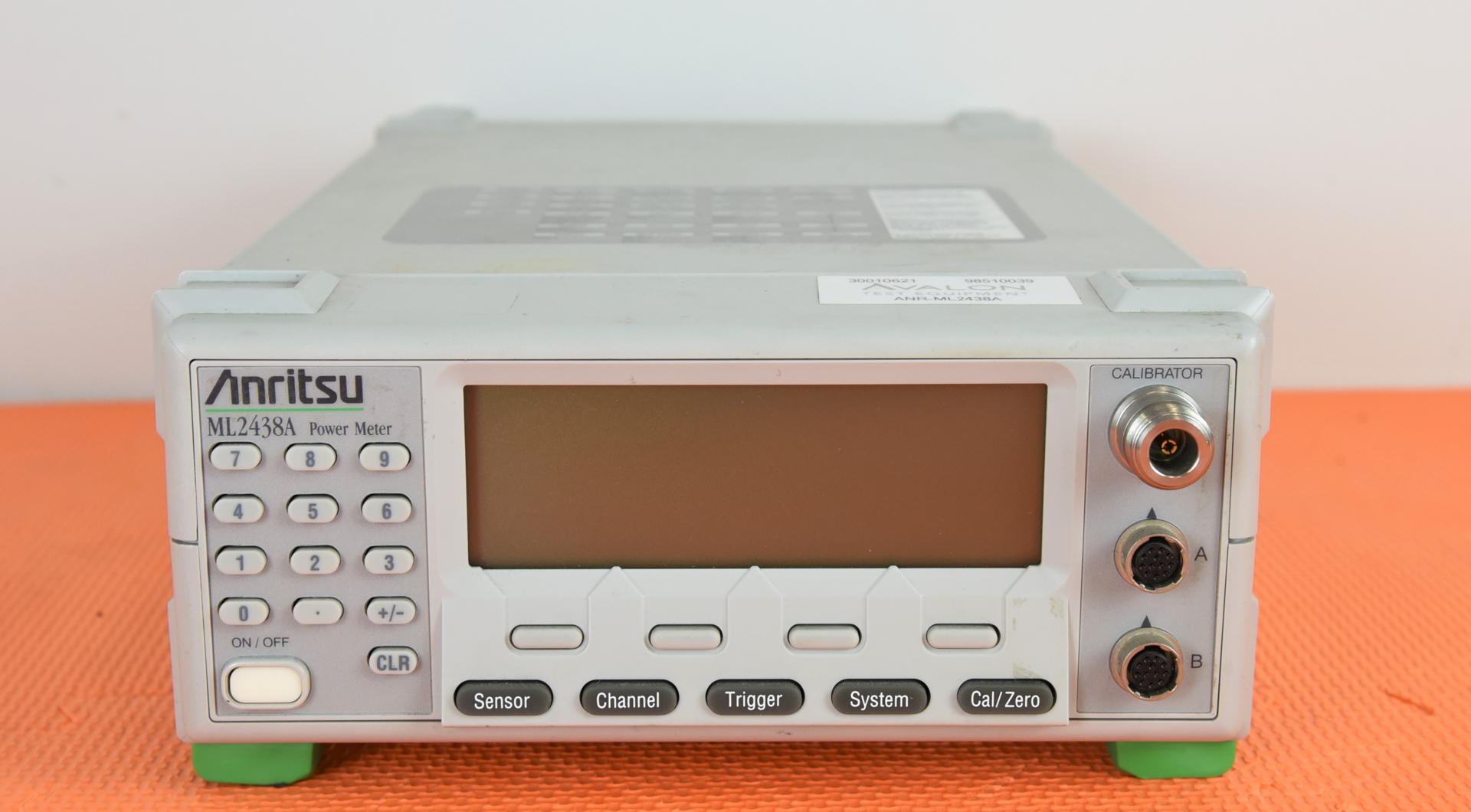

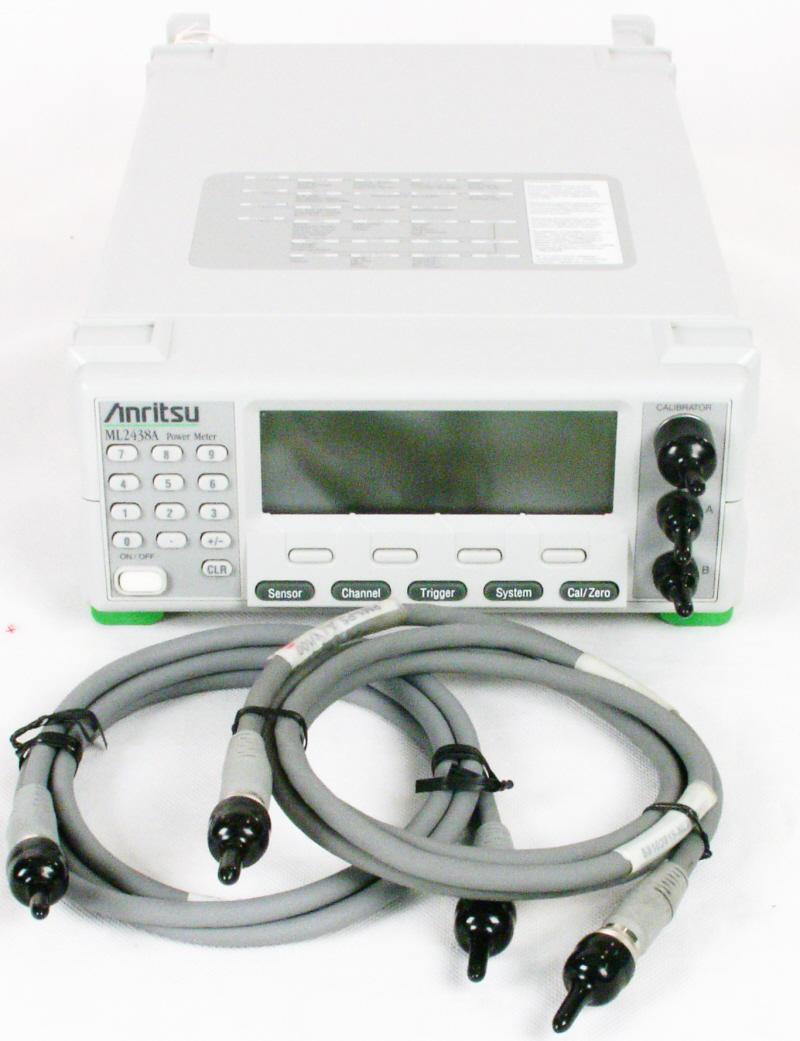

Anritsu ML2438A Power Meter is a high-performance dual-channel RF and microwave power measurement instrument designed for accurate, high-speed measurement of continuous-wave (CW) and time-varying RF power. It combines the accuracy characteristics of thermal power meters with the speed of diode-based meters and graphical power-versus-time measurement capabilities. The ML2438A can sample at more than 35,000 readings per second and provides up to 90 dB dynamic range with a suitable single sensor. The instrument has two sensor inputs, making it particularly useful for simultaneous measurements, source leveling, production test, and automated RF test systems.
