Description

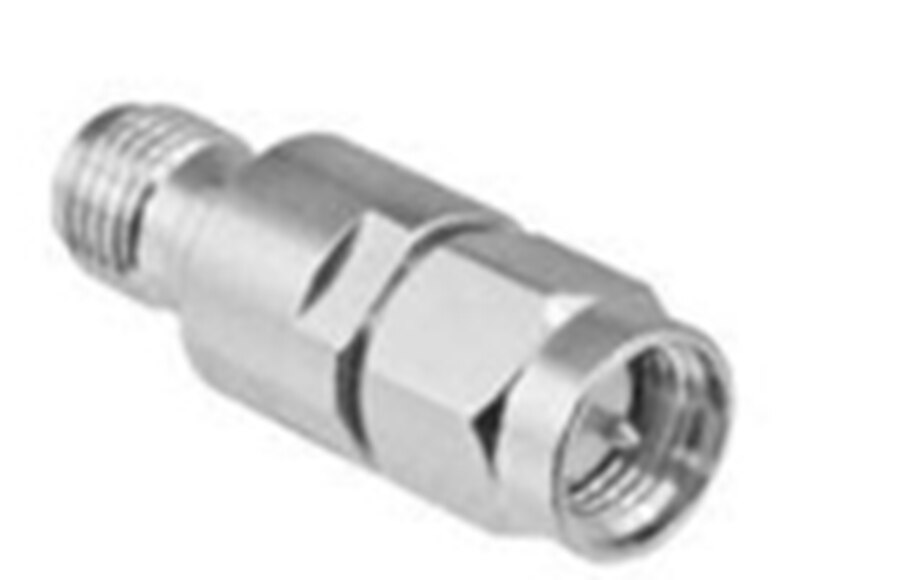

This compact RF attenuator reduces signal strength by 6 decibels (dB)—cutting the power to about 25% of its original level—across a frequency range of DC to 3 GHz. With a 2 Watt CW rating, it’s ideal for low-to-moderate power RF systems where moderate attenuation is needed without compromising signal integrity. 📐 Key Specifications - Attenuation: 6 dB (reduces signal power by ~75%) - Power Handling: 2 Watts continuous wave (CW) - Frequency Range: DC to 3 GHz - Connector Type: SMA male-to-female - Impedance: 50 ohms - VSWR: Typically ≤ 1.15:1 - Return Loss: Better than 20 dB - Construction: - Body: Stainless steel or gold-plated brass - Contacts: Gold-plated brass (male), gold-plated BeCu (female) - Resistive Element: Thick-film on alumina substrate - Operating Temp: -55°C to +125°C - Configuration: Bidirectional 🧰 Applications - RF Testing: Prevents overload of analyzers and receivers - Signal Conditioning: Reduces signal levels to meet system specs - Impedance Matching: Maintains system balance in compact RF chains - Microwave & Communication Systems: Ideal for handheld analyzers, embedded modules, and lab setups
