high frequency cable assembly by rf connector house

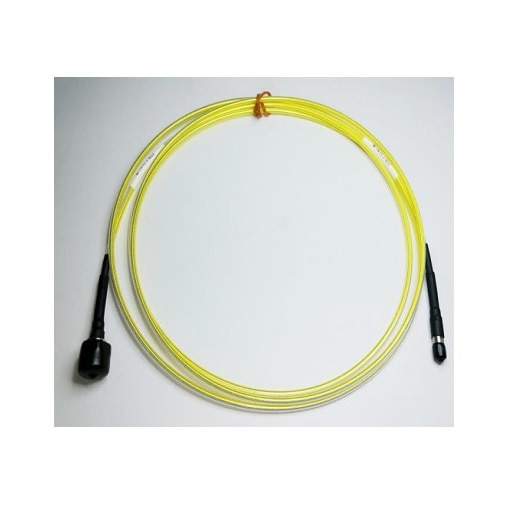

N(M) to SMA(M) High Frequency DC to 18Ghz Cable1
INR 7500 INR 8500
Check On
Enquire
Description
Inner Conductor - silver plated copperwire - 1.44mm Insulation - LDPTFE - 3.80mm Inner Shield -Silver Plated Copper Wire - 4.00mm Middle Shield -LDPTFE - 4.30mm Outer Shield -Silver Plated Copper Wire - 4.65mm Jacket - FEP - 5.00mm Bending Radius - 25.4mm Frequency - 18Ghz Impedance - 50Ohm Max. Power - 100w
