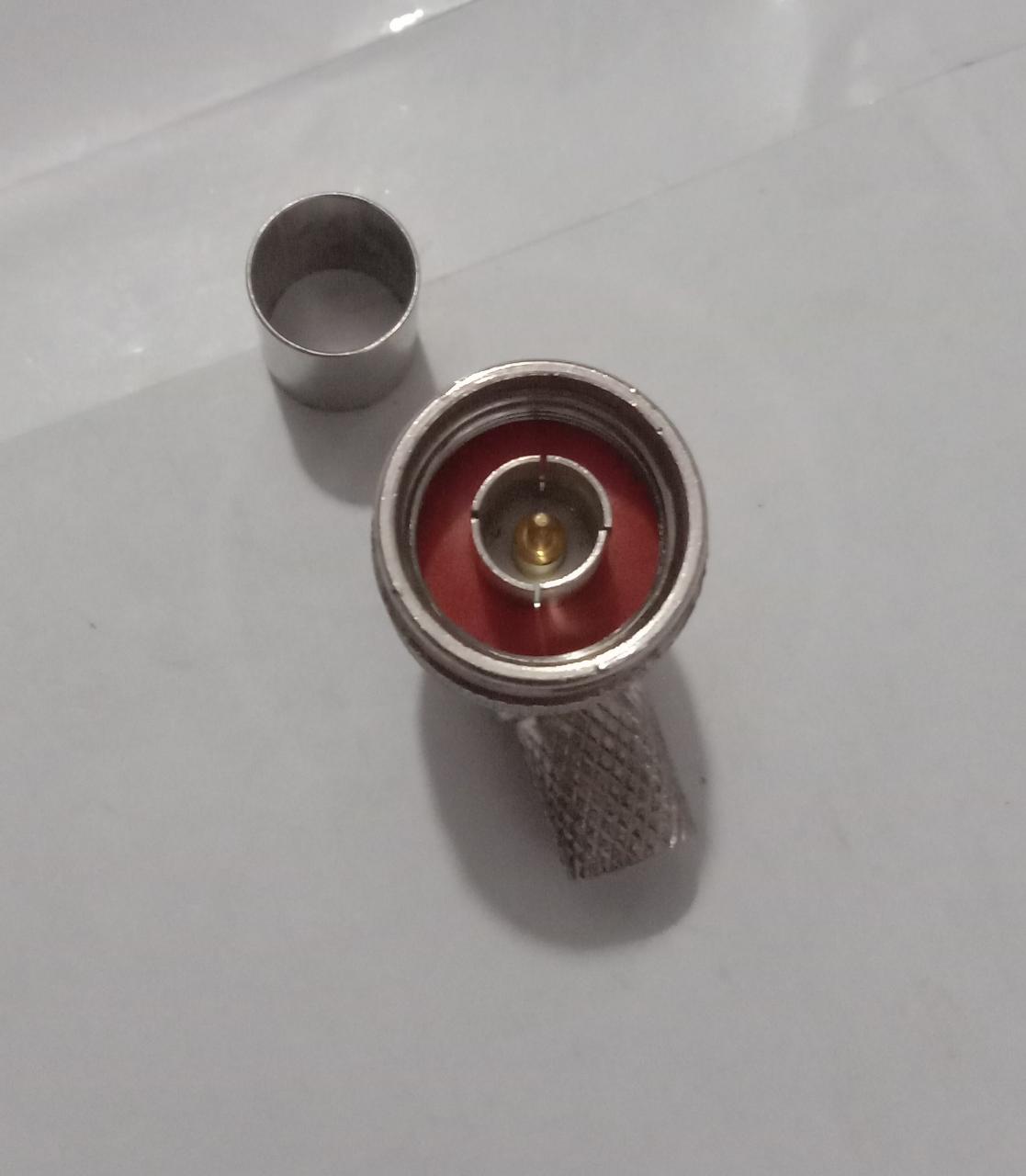

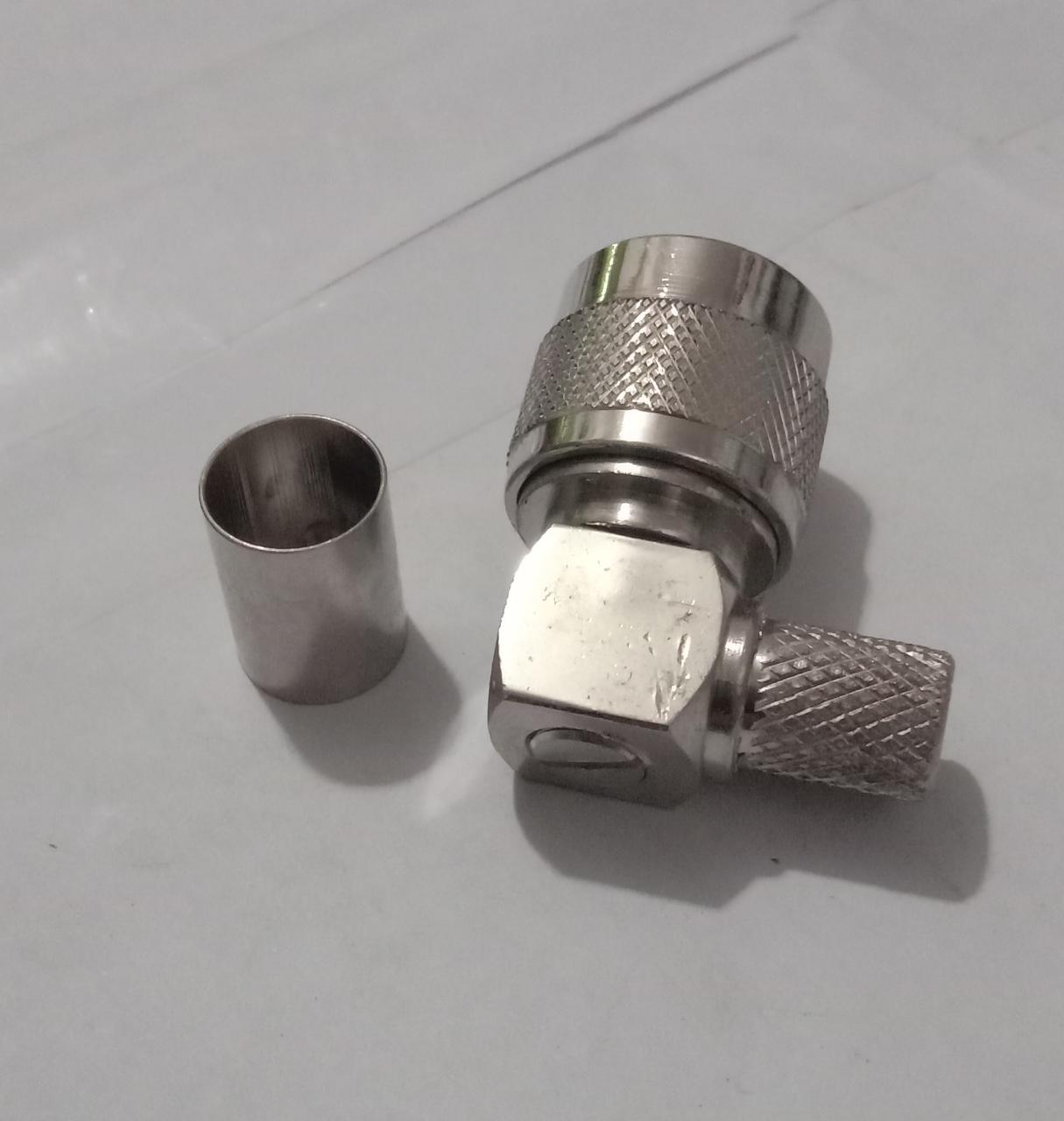

Description
DESCRIPTION CHARACTERISTIC IMPEDANCE 50 OHM FREQUENCY RANGE DC-4GHZ VSWR ≤1.15@DC-4GHZ DIELECTRIC WITHSTANDING VOLTAGE≥1000V RMS,50HZ,AT SEA LEVEL DIELECTRIC RESISTANCE ≥5000MΩ CONTACT RESISTANCE CENTER CONTACT ≤1MΩ OUTER CONTACT ≤0.25MΩ MECHANICAL DURABILITY MATING CYCLES ≥500 MATERIAL AND PLATING BODY BRASS INSULATOR PTFE(TEFLON) CENTER CONDUCTOR PHOSPHOR COPPER AU ENVIRONMENTAL: OPERATING TEMPERATURE RANGE -40℃～+85℃ ROHSCOMPLIA
