Description

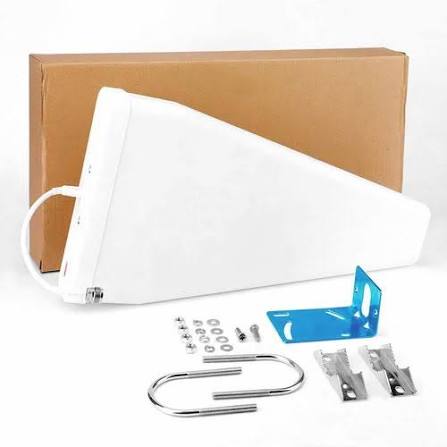

The LPDA Antenna 12 dBi (698–2700 MHz) is a high-gain, broadband directional antenna designed to provide reliable signal transmission and reception across a wide frequency range. Covering 698–2700 MHz, it supports multiple wireless technologies including 2G, 3G, 4G LTE, 5G Sub-6 GHz, GSM, UMTS, CDMA, Wi-Fi, and IoT applications. Its 12 dBi gain and directional radiation pattern ensure enhanced coverage, improved signal strength, and reduced interference, making it ideal for long-distance communication, DAS, IBS, base stations, signal boosters, and industrial wireless networks. Key Features Wide frequency coverage: 698–2700 MHz High 12 dBi directional gain Log Periodic Dipole Array (LPDA) design for broadband performance Excellent front-to-back ratio for reduced interference Low VSWR for efficient RF power transfer Vertical or horizontal polarization options 50 Ω impedance compatible with standard RF equipment Rugged aluminium construction for outdoor environments UV-resistant and corrosion-resistant finish Easy pole or mast mounting RoHS compliant Applications 2G, 3G, 4G LTE and 5G communication systems Cellular signal boosters and repeaters Distributed Antenna Systems (DAS) In-Building Solutions (IBS) Base stations Rural and remote wireless communication Industrial IoT networks Wireless broadband systems Public safety communication Fixed wireless access (FWA) Typical Specifications Parameter Specification Frequency Range 698–2700 MHz Gain 12 dBi Antenna Type Log Periodic Dipole Array (LPDA) Radiation Pattern Directional Polarization Vertical / Horizontal Horizontal Beamwidth 50°–70° (Typical) Vertical Beamwidth 45°–60° (Typical) Front-to-Back Ratio ≥ 20 dB VSWR ≤ 1.5:1 Impedance 50 Ω Maximum Input Power 100 W Connector N Female Mounting Pole / Mast Mount Operating Temperature -40°C to +85°C Compliance RoHS
