Digital Sound Level Meter Atten AT-SM 1357 - 30~130 dBA, 35~130 dBC Measuring Range
INR 10000
Description

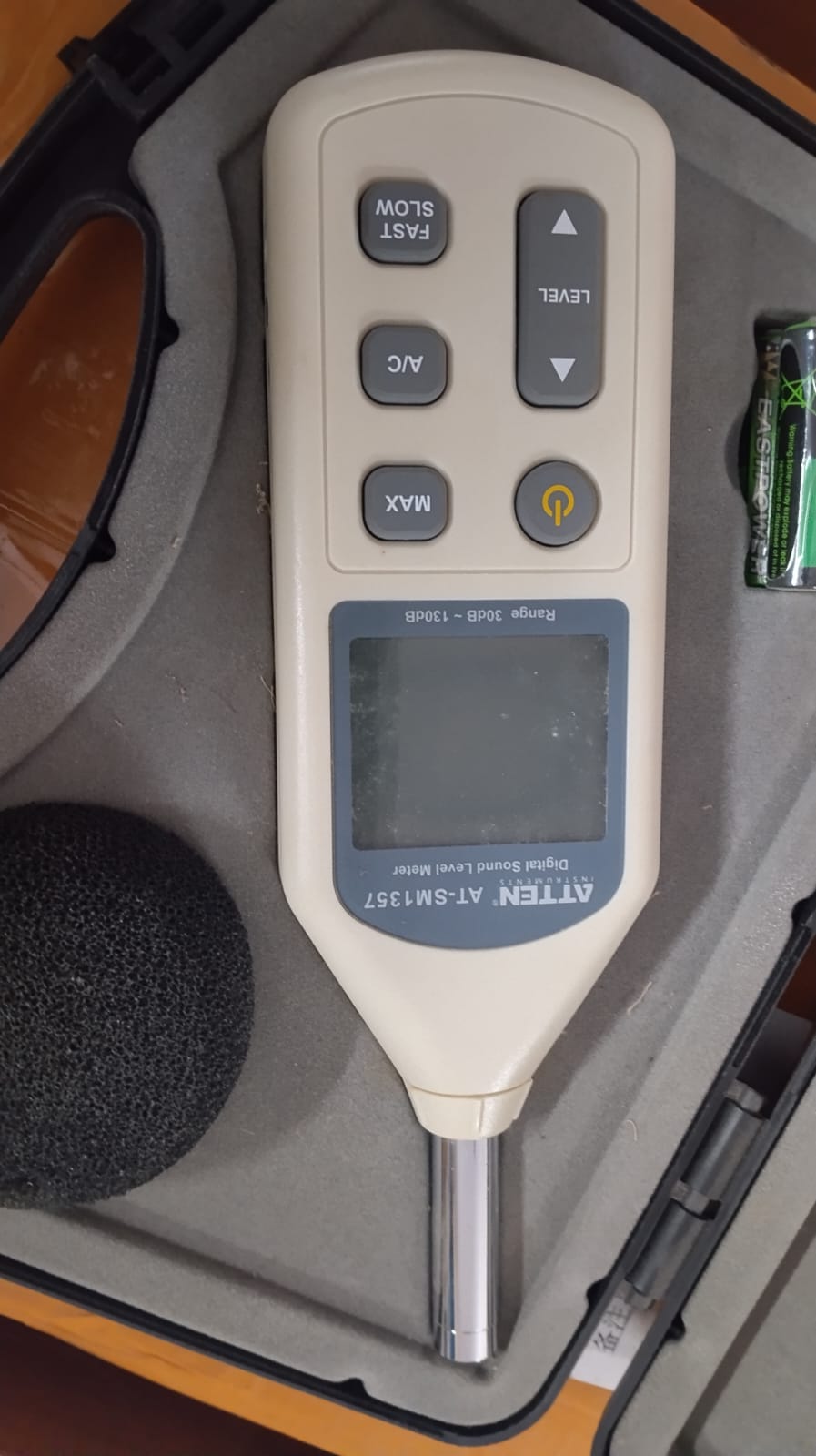

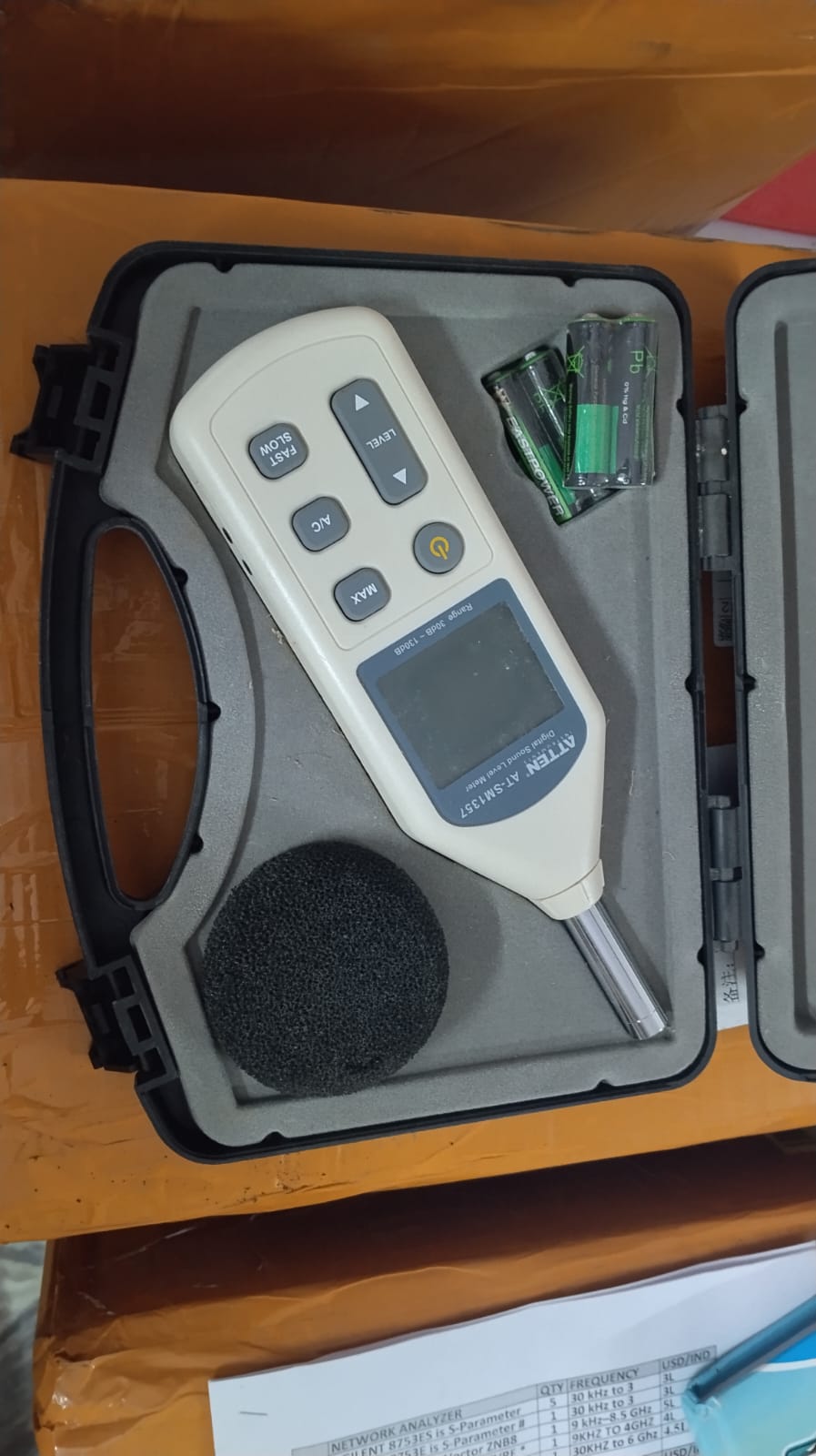

The AT-SM1357 is a handheld digital sound level meter intended for general purpose noise measurement: ambient noise in offices, factories, traffic environments; audio system level checking; sound-quality control. It provides decibel (dB) readings of sound pressure level with selectable frequency weighting (A & C) and selectable time weighting (Fast & Slow). The instrument typically features a ½-inch electret condenser microphone, a digital LCD display (with additional bar-graph), multiple range settings, a maximum hold function, AC/DC analog outputs for recorder/analysis, and is powered by standard AA batteries (or optionally external DC).
Other Specifications
| Accuracy : | ±1.5 dB (reference conditions) |
| Frequency Range : | 31.5 Hz~8.5 kHz Level Ranges: 30~80, 50~100, 60~110, 80~130, 30~130 |
| Bar Graph : | 50 dB scale at 1 dB step (20 samples/sec) |
| impedance : | ≈ 600 DC Output: 10 mV/dB, impedance ≈ 100 Ω |
| MAX Power Supply : | 4 × AA batteries or DC 6V 100 mA (max 9V) |
