Description

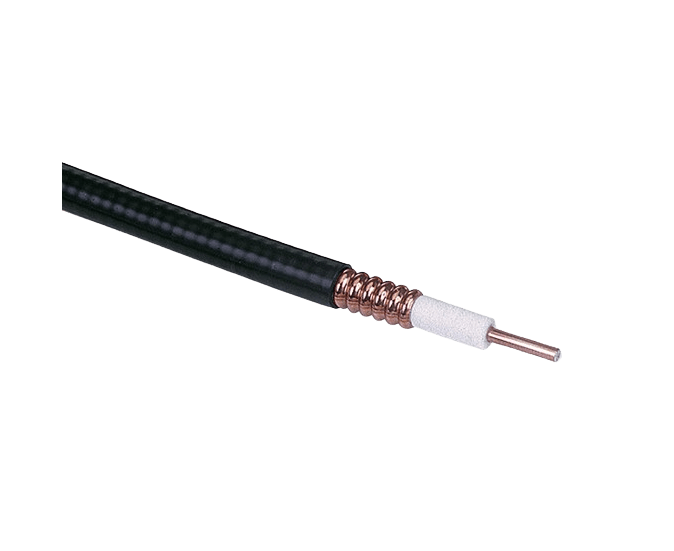

1/4" refers to the outer diameter of the cable, approximately 0.25 inches. LDF stands for Low Density Foam, which is the dielectric (insulating material) inside the cable. It is a type of corrugated coaxial cable made by companies like CommScope (Andrew Heliax). Common part number: LDF1-50A or similar. Impedance: Usually 50 ohms. Used for: RF transmission, antenna feeders, cellular base stations, etc.
Other Specifications
| Jacket-Black : | 8.82mm |
| Outer Conductor-Annularly Corrugated Tube : | 7.9mm |
| Dielectric-Foamed Polyethylene : | 6.45mm |
| Inner Conductor-Copper clad aluminium : | 2.70mm |
| Impedance : | 50ohm |
