Description

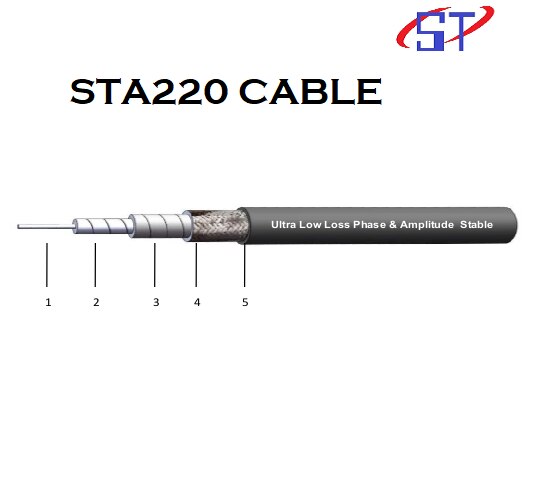

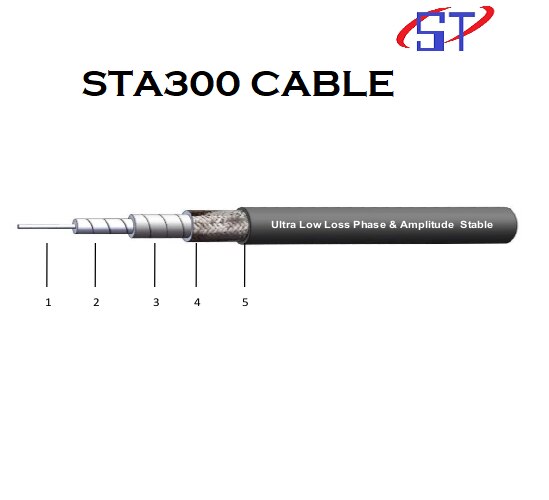

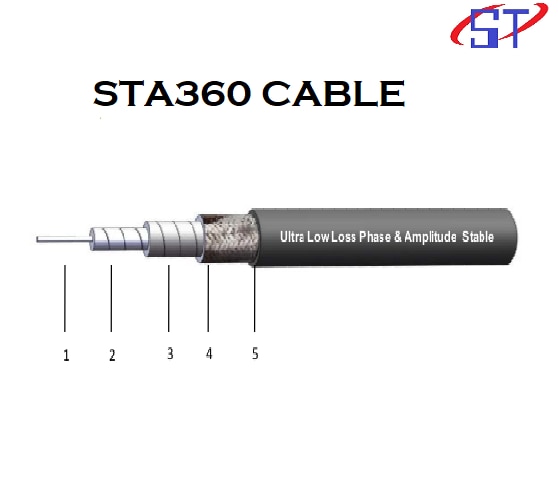

Inner Conductor 1.40 Solid SPC 2 Dielectric 3.80 LD-PTFE 3 Outer Conductor 3.95 SPC Strip 4 Outer Shield 4.35 SPC Braid 5 Jacket 4.80 Grey PFA or Custom Mechanical & Environmental Specifications Static Bend Radius ：24mm Dynamic Bend Radius ：48mm Weight：0.055Kg/m Installation &Operating Temperature Range ：-55℃~+165℃ Electrical Specifications Frequency Range ：26.5GTLZ Cutoff Frequency ：31GTLZ Characteristic Impedance ：50Ω Velocity of Propagation ：83% Shielding Effectiveness ：>90dB Voltage Power ：1500V,DC
Keywords
Ω•DC•55Kg•1500V•Weight•31GTLZ•Velocity•Dielectric•80 LD-PTFE•Mechanical•Propagation•Installation•35 SPC Braid•Voltage Power•4 Outer Shield•1.40 Solid SPC•3.95 SPC Strip•3 Outer Conductor•Static Bend Radius•Dynamic Bend Radius•GTLZ Cutoff Frequency•5 Jacket 4.80 Grey PFA•Shielding Effectiveness•Characteristic Impedance•Operating Temperature Range•Environmental Specifications•STA480 CABLE Inner Conductor•Electrical Specifications Frequency Range
