Description

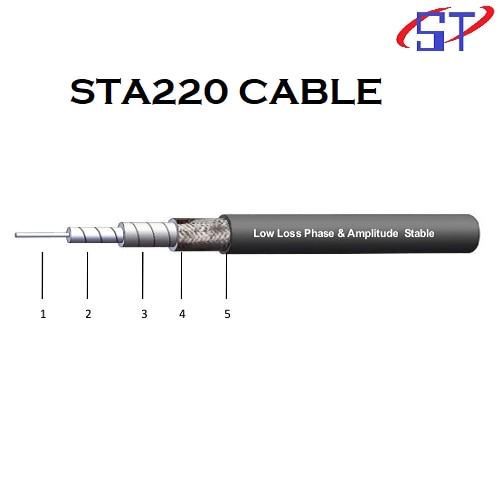

Inner Conductor 0.91 Solid SPC 2 Dielectric 2.50 LD-PTFE 3 Outer Conductor 2.66 SPC Strip 4 Outer Shield 3.11 SPC Braid 5 Jacket 3.60 Grey PFA or Custom Mechanical & Environmental Specifications Static Bend Radius ：18mm Dynamic Bend Radius ：36mm Weight：0.033Kg/m Installation &Operating Temperature Range ：-55℃~+165℃ Electrical Specifications Frequency Range ：40GTLZ Cutoff Frequency ：46GTLZ Characteristic Impedance ：50Ω Velocity of Propagation ：82% Shielding Effectiveness ：>90dB Voltage Power ：500V,DC
Keywords
Ω•11•500V•33Kg•46GTLZ•Custom•Weight•5 Jacket•Velocity•SPC Braid•Mechanical•50 LD-PTFE•Propagation•60 Grey PFA•Installation•2 Dielectric•Voltage Power•2.66 SPC Strip•0.91 Solid SPC•4 Outer Shield•Frequency Range•3 Outer Conductor•Static Bend Radius•Dynamic Bend Radius•Shielding Effectiveness•40GTLZ Cutoff Frequency•Characteristic Impedance•Electrical Specifications•Operating Temperature Range•Environmental Specifications•STA360 CABLE Inner Conductor
