Description

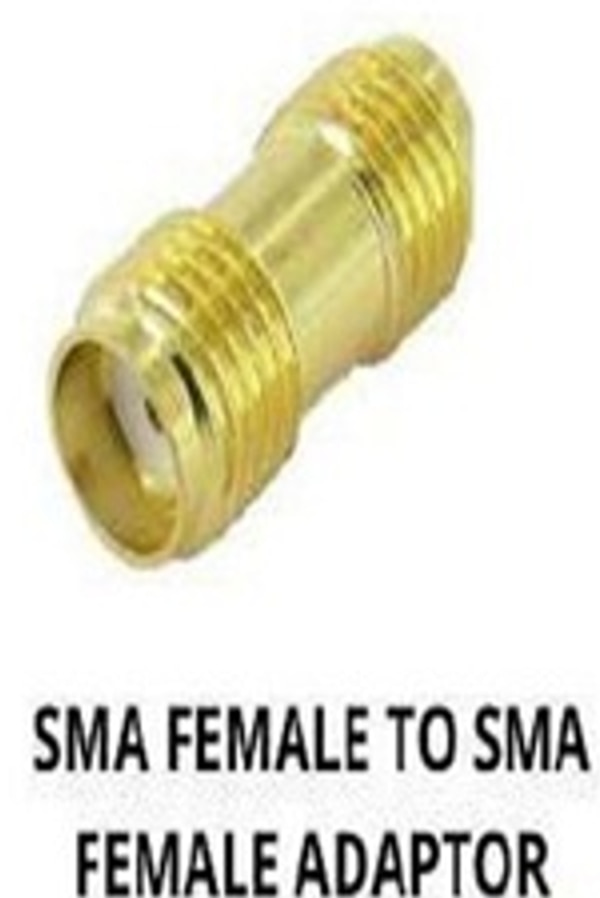

A SMA female-to-female adaptor is a straight in-series coaxial connector used to join two SMA male connectors—commonly found in RF test setups, antenna systems, and microwave circuits. Here's a technical overview: - Connector Type: SMA jack (female) on both ends - Impedance: 50 Ohms - Frequency Range: DC to 18 GHz (e.g., Mini-Circuits SF-SF50+) - VSWR: Typically ≤1.15:1 up to 6 GHz - Construction: - Body: Stainless steel or nickel-plated brass - Center Contact: Gold-plated beryllium copper - Insulator: PTFE (Teflon) - Mounting Options: Available in straight, bulkhead, and flange panel-mount styles - Applications: RF/microwave test benches, signal routing, antenna feeds, and lab instrumentation
