Polar Pattern Microwave Test Bench by RF CONNECTOR HOUSE

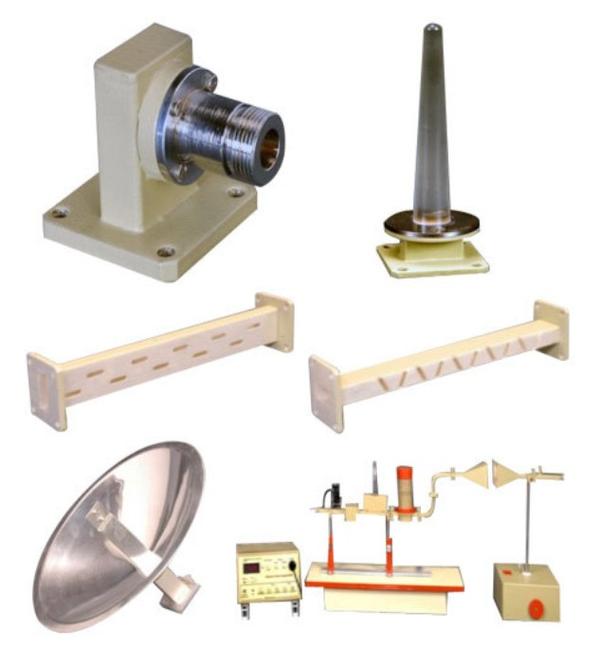

Polar Pattern Microwave Test Bench
INR 1000
Check On
Enquire
Description
A test setup used to measure the radiation characteristics of microwave antennas by recording signal strength at various angles, generating a polar plot of the antenna's directional response. It helps in analyzing the beamwidth, gain, and side lobes of antennas, providing a visual representation of how the antenna radiates energy in space. Commonly used in antenna design, research, and microwave engineering education.
