Description

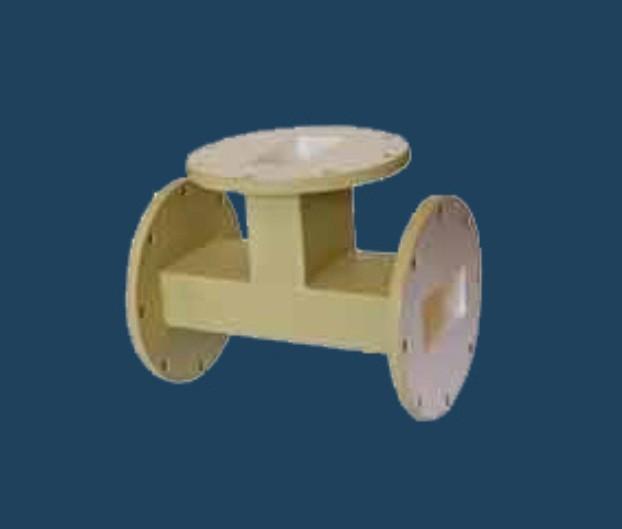

A waveguide junction that splits or combines signals in the E-plane (electric field plane), forming a “T” configuration. One arm is connected in the E-plane relative to the main waveguide axis, causing signals to divide or combine with a 180° phase difference. Ideal for use in balanced mixers, hybrid circuits, and RF distribution networks, the E-Plane Tee operates over a specific frequency band with low insertion loss and precise phase control.
