COUPLER by RF CONNECTOR HOUSE

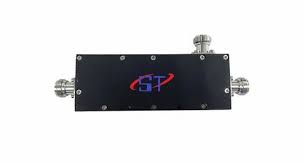

COUPLER 30DB - RF CONNECTOR HOUSE BRAND
INR 360
In Stock
COD Available
Enquire
Description
Coupling Factor: Nominal ~ 30 dB (e.g., 30 ± 2.0 dB). hasco-inc.com +1 Frequency Range: Examples include 0.3‑8 GHz hasco-inc.com , 2‑18 GHz pasternack.com , 26.5‑40 GHz krytar.com +1 Insertion Loss (Thru Path): Often ≤ ~1.0‑1.5 dB. krytar.com +1 Coupling Flatness / Sensitivity: ±0.5‑2.0 dB typical. For example ±0.6 dB typical for one model. hasco-inc.com Directivity: Varies; for example ~23 dB typical on some models. hasco-inc.com VSWR / Return Loss: Example VSWR <1.5:1 for one model. pasternack.com Power Handling: Depends heavily on frequency and physical size; examples of 50 W for one via SMA connector model.
Other Specifications
| Power: : | 50 W max for that model |
| Directivity: : | ~23 dB typical in 0.3‑6 GHz band. |
| Insertion Loss (Mainline) : | 05 dB typical, 1.0 dB max. |
| Coupling: : | 30 ±2.0 dB |
| Frequency Range: : | 0.3‑8 GHz |
