Description

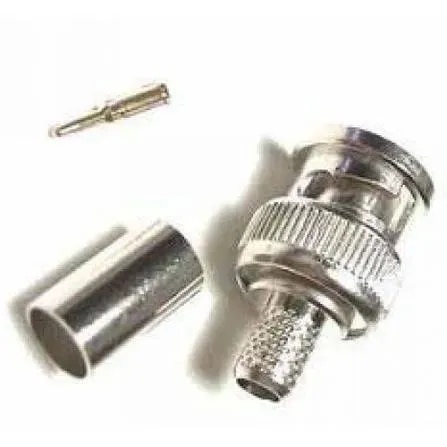

A BNC Male BT 3002 Crimp Connector (BNC M BT 3002 CRIMP) is a 75-ohm RF cable plug designed specifically to terminate onto telecommunications-grade BT 3002 (Type 3002) coaxial cable using a dual-crimp method.Part Designation BreakdownBNC: Quick quarter-turn twist-and-lock bayonet coupling interface.M: Male plug connector (features the center pin contact and rotating bayonet collar).BT 3002: Precision-sized for flexible, low-loss BT 3002 / Type 3002 75 $Omega$ telecom coaxial cable (~3.55 mm outer diameter).CRIMP: Dual-crimp termination (crimp ferrule for outer shield braid + crimp/solder center pin contact).Technical SpecificationsParameterSpecificationConnector GenderMale (Plug)Mounting StyleInline Cable Mount (Straight)Cable CompatibilityBT 3002 / Type 3002 Coaxial Cable (~3.55 mm OD)Impedance75 $Omega$ (Telecom and professional video standard)Termination MethodOuter Ferrule Crimp + Center Contact Crimp/SolderFrequency RangeDC to 3 GHzVSWR$le 1.15$ to $1.20$ (DC to 3 GHz)Working Voltage500V RMS peakBody MaterialNickel- or Gold-plated BrassCenter ContactGold-plated phosphor bronze or brassInsulatorPTFE (Teflon)
