Description

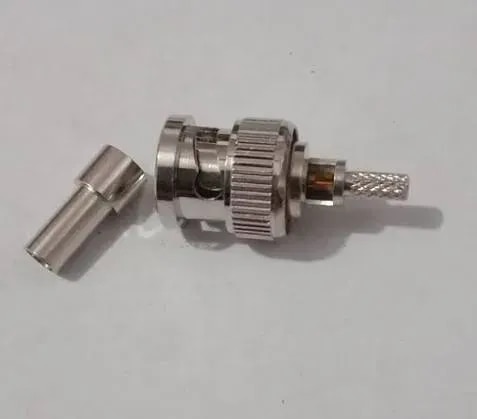

A BNC Male BT 3002 CPS Connector (BNC M BT 3002 CPS) is a cable-mount RF plug designed to terminate onto 75-ohm telecom-grade BT 3002 (Type 3002) coaxial cable. Part Designation BreakdownBNC: Quick quarter-turn bayonet coupling interface.M: Male plug connector (features a center pin contact and rotating outer bayonet collar). BT 3002: Cable match (engineered specifically for BT 3002 / Type 3002 flexible 75 $Omega$ telecom coaxial cable, ~3.55 mm outer diameter).CPS: Crimp Pin & Sleeve (denotes crimp-style termination for both the center contact pin and the outer shielding ferrule).Technical SpecificationsParameterSpecificationConnector GenderMale (Plug)Mounting StyleInline Cable MountCable CompatibilityBT 3002 / Type 3002 Coaxial Cable (~3.55 mm OD)Impedance75 $Omega$ (Telecom/Broadcast standard) / 50 $Omega$ variantsTermination MethodCrimp Pin + Crimp Sleeve / Ferrule (CPS)Frequency RangeDC to 3 GHz / 4 GHzVSWR$le 1.15$ to $1.20$ (DC to 3 GHz)Dielectric Voltage$ge 1000text{V RMS}$ to $2500text{V RMS}$Body MaterialNickel- or Silver-plated BrassCenter Pin ContactGold-plated phosphor bronze or copperInsulatorPTFE (Teflon)
