Description

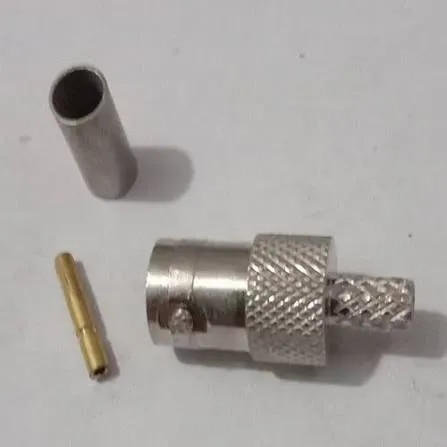

A BNC Female LMR-200 Crimp Connector is a 50-ohm RF inline cable connector engineered to terminate onto flexible, low-loss LMR-200 coaxial cable using a dual-crimp method.It provides a female BNC bayonet coupling socket for quick connection with standard male BNC plugs, offering a permanent, high-strength physical bond and $360^circ$ continuous shield grounding.Technical SpecificationsParameterSpecificationConnector GenderFemale (Jack)Mounting StyleCable Mount (Straight)Cable CompatibilityLMR-200, RG-58, RG-142, RG-400 (~4.95 mm / 0.195 in outer diameter)Impedance50 $Omega$Termination MethodCrimp ferrule (outer shield) + Crimp or Solder (center contact)Frequency RangeDC to 3 GHz / 4 GHzVSWR$le 1.20$ (DC to 3 GHz)Working Voltage500V RMS peakInsulation Resistance$ge 5000text{ M}Omega$Body Material & PlatingNickel-plated BrassCenter Pin ContactGold-plated phosphor bronze or brassInsulator MaterialPTFE (Teflon)Key FeaturesPrecision LMR-200 Sizing: Engineered specifically for the outer jacket (~4.95 mm), foam dielectric, and center conductor dimensions of LMR-200 cable to prevent signal leakage or impedance mismatch.Dual-Crimp Reliability: The outer sleeve (ferrule) is hex-crimped over the copper braid using a standard crimp tool (typically .213" hex die), delivering strong mechanical strain relief for high-vibration applications.PTFE Insulator: Heat-resistant Teflon dielectric maintains mechanical pin stability during center pin soldering or crimping.Standard Options AvailableBNC F LMR 200 CRIMP₹50.00A standard 50-ohm straight cable-mount BNC jack connector designed for low-loss LMR-200 coaxial cables.Amphenol 112598 RF Connector BNC Crimp Jack for LMR-200₹1,718.24·AmphenolA high-precision 50-ohm industrial BNC female crimp jack designed for LMR-200 and Belden 7807A cables.Common ApplicationsRF Transmission & Antenna Feeders: Terminating low-loss LMR-200 cables connecting wireless routers, cellular boosters, GPS receivers, and LoRa gateways.Test & Measurement Jumper Assemblies: Building custom-length BNC female adapter cables for laboratory patch switchers and oscilloscopes.Broadcast & Video Infrastructure: Security systems and RF video feed extensions.
