Description

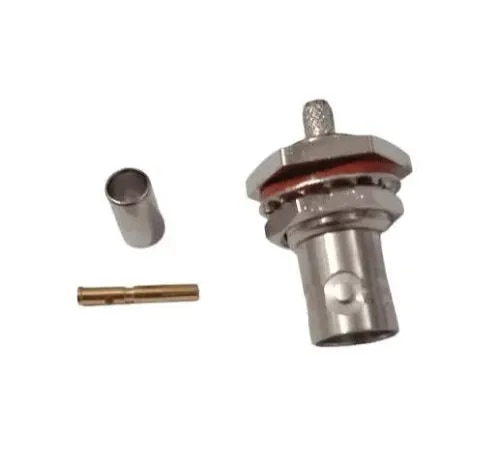

A BNC Female BT 3002 Crimp Connector (BNC F BT 3002 CRIMP) is a 75-ohm RF cable-mount connector engineered specifically to terminate telecom-grade BT 3002 (Type 3002) coaxial cable using a dual-crimp method.Part Designation BreakdownBNC: Quick twist-and-lock bayonet coupling style.F: Female connector interface (Jack).BT 3002: Custom-sized for flexible, low-loss BT 3002 / Type 3002 coaxial cable (~3.55 mm outer diameter).CRIMP: Dual-crimp termination (crimp pin for the center conductor and crimp ferrule for the outer shield).Technical SpecificationsParameterSpecificationConnector GenderFemale (Jack)Mounting StyleCable Mount (Straight)Cable CompatibilityBT 3002 / Type 3002 / T3002 Coaxial CableImpedance75 $Omega$ (Standard for telecom and BT 3002 cabling)Termination MethodCrimp (Center pin contact + Outer braid ferrule)Frequency RangeDC to 3 GHzVSWR$le 1.20$ (DC to 3 GHz)Working Voltage500V RMS peakBody MaterialNickel- or Silver-plated BrassCenter Pin ContactGold-plated phosphor bronze or copperInsulator MaterialPTFE (Teflon)Key FeaturesTelecom-Grade 75 $Omega$ Matching: Maintained 75-ohm characteristic impedance minimizes return loss and signal reflections in telecommunications and video routing networks.Dual Crimp Assembly: Provides a permanent, high-reliability mechanical hold and uniform $360^circ$ shield grounding for fast, repeatable volume assembly.Compact Inline Profile: Designed for high-density patching environments where space behind or between equipment panels is limited.Common ApplicationsDigital Distribution Frames (DDF): Interconnecting high-density telecom switching hardware and transmission racks using BT 3002 jumpers.Broadcast & Video Patching: Professional 75-ohm video feed networks and rackmount routing switchers.Telecom Base Stations: Internal RF signal routing across switching gear and transmission modules
