Description

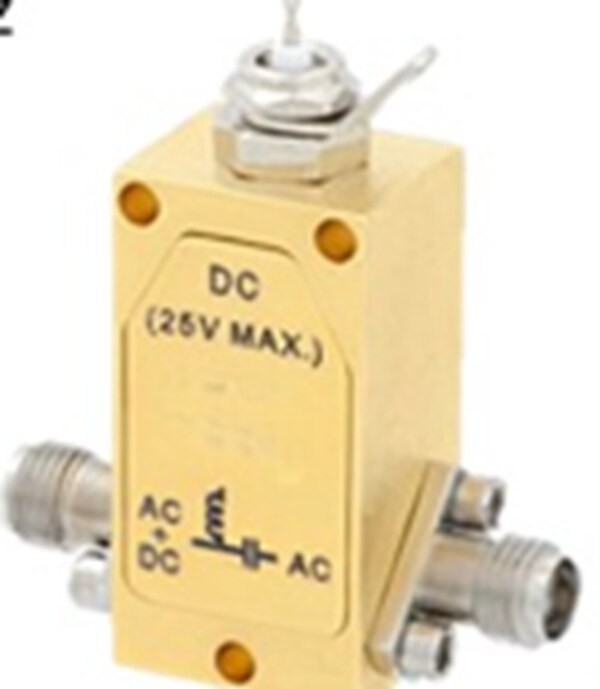

ultra-broadband bias tee designed for high-frequency RF and microwave applications—ideal for test and measurement setups, optical systems, and broadband communication links. 🔧 Key Specifications (based on the Pasternack PE1608 model): - Frequency Range: 0.1 MHz to 26.5 GHz - Impedance: 50 ohms - VSWR: ≤ 1.8:1 across the full band - Insertion Loss: ~1.5 dB typical - DC Rating: 750 mA @ 25 VDC - RF Port Connectors: 3.5 mm female (input) to 3.5 mm male (output) - DC Port: Solder pin (female) - RF to DC Isolation: ≥ 30 dB - Construction: Passivated stainless steel body, gold-plated BeCu contacts, high-temp dielectric - Operating Temp: -65°C to +125°C 🛠️ Applications: - Biasing photodiodes, amplifiers, or MMICs in broadband systems - Injecting DC into RF paths without disrupting signal integrity - High-speed digital and analog test environments This model is part of Pasternack’s high-frequency bias tee lineup and is available for same-day shipping globally. If you're working in mmWave or optical-electronic integration, this component offers a compact and reliable solution.
