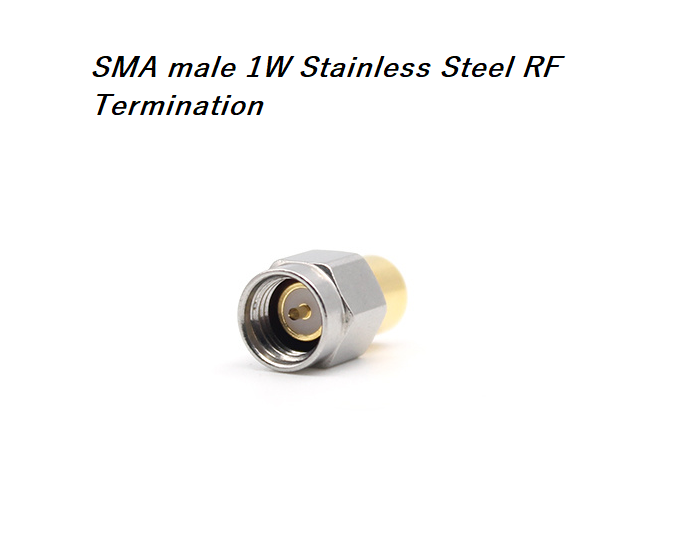

SMA male 1W Stainless Steel RF Termination Electrical data Requirments Frequency range DC-6GHZ Dielectric withstanding voltage 1000V Characteristic impedance 50Ω Insulation Resistance ≧5000MΩ VSWR ≦1.25 Power 1W Mechanical data Requirments Durability(matings) ≥500 Environmental data Requirments Temperature range -65℃ to 165℃ Material data Requirments Connector parts Material Plating Body Stainless steel Passivated Coupling nut Stainless steel Passivated Pin contacts Beryllium copper Gold Insulators PTFE
