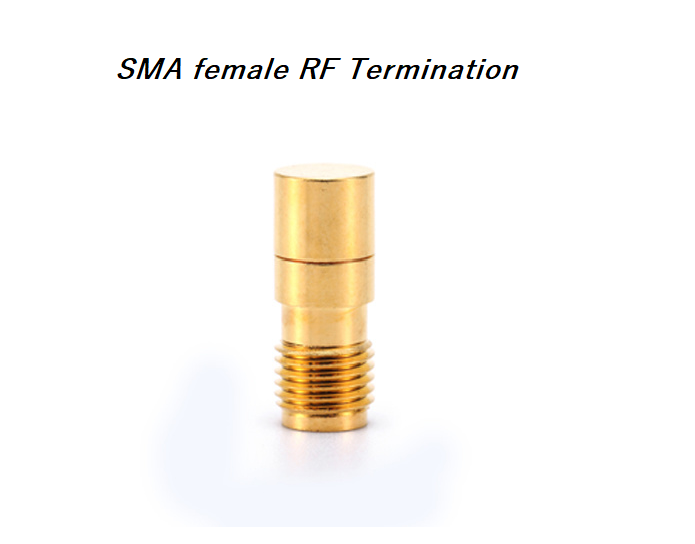

SMA female RF Termination Electrical data Requirments Impedence 50Ω Frequency range DC-6GHZ Dielectric withstanding voltage 1000V(volts RMS) Center contact resistance ≦3mΩ Outer contact resistance ≦2mΩ Insulation resistance ≧5000MΩ VSWR 1.2:1 Mechanical & Environmental Requirments Temperature range -40℃ ~ +85℃ RoHs Compliant Durability(matings) >500 cycles Material data Requirments Connector parts Material Plating Body Brass Gold Plated Insulators Teflon Contact Pin Bronze Gold Plated Nut Brass Gold Plated
