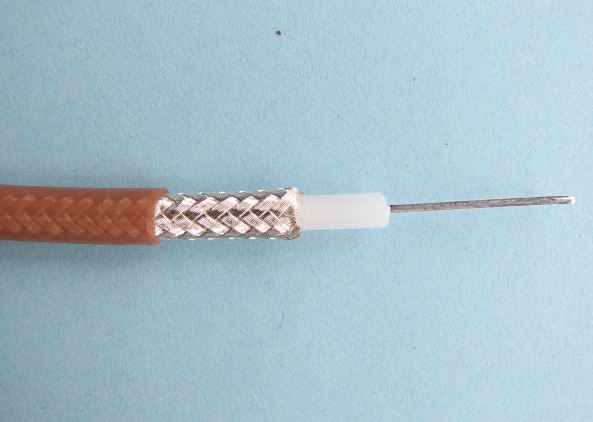

RG 142 CABLE Items MaterialItems Diameter(mm) Center conductor silver plated copper cover 0.94 Dielectric Solid PTFE 2.95 1 out shield silver plated copper wire braiding 3.60 2 out shield silver plated copper wire braiding 4.191 Jacket FEP (BROWN) 4.95 Performance: properties Details Cutoff frequency 12.4 Ghz Characteristics impedance 50±2.5Ω Capacitance 96.50Pf/m Min. bending radius 44.0mm Nominal weight 2kg/100m Temp rang -55˚ to 200˚c Performance: Frequency Attenuation (db/100m, 5-10% increment allowance Power (watt) 1000 MHz 43.0 240 4000MHz 97.9 205 6000MHz 113.0 180 1250MHz 145.5 100
