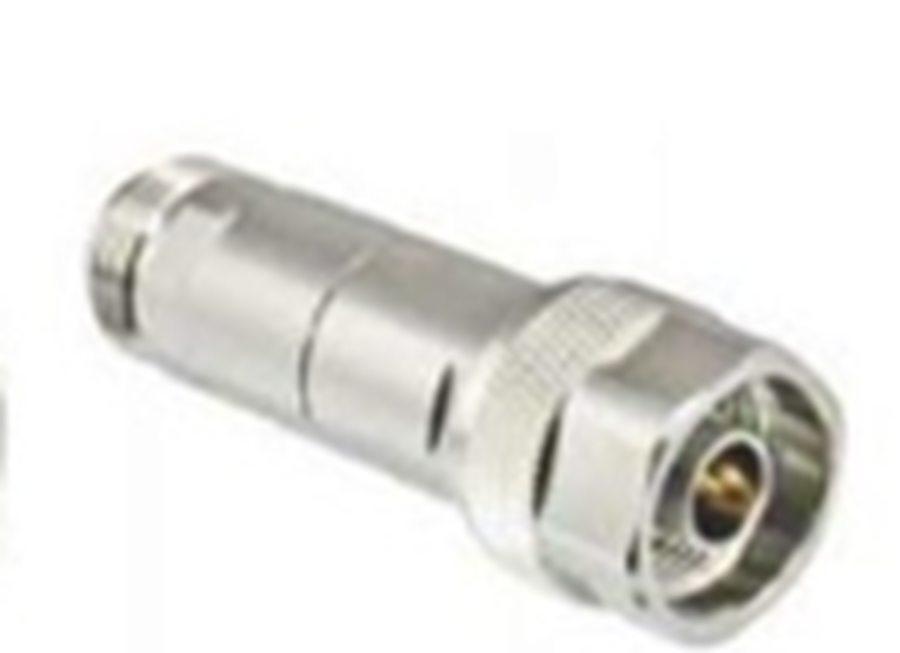

Here’s a detailed description of a 1 dB, 5 Watt, 6 GHz N-type attenuator, Sunny: 🔧 Overview This RF attenuator is designed to provide 1 decibel (dB) of fixed attenuation—reducing signal power by about 20%—across a frequency range of DC to 6 GHz. With a 5 Watt power rating, it’s ideal for higher-power RF applications where minimal signal reduction is needed without compromising system performance. 📐 Key Specifications - Attenuation: 1 dB (approx. 20% power reduction) - Power Handling: 5 Watts continuous wave (CW) - Frequency Range: DC to 6 GHz - Connector Type: N-type, male-to-female - VSWR: Typically ≤ 1.25:1, ensuring low signal reflection - Impedance: 50 ohms - Construction: Brass body with BeCu contacts for excellent conductivity - Thermal Design: Passive air-cooled, no external power required 🧰 Applications - Test & Measurement: Protects instruments from slight overdrive - Signal Conditioning: Fine-tunes signal levels in RF chains - Impedance Matching: Helps reduce mismatch losses - Telecom, Radar & Defense: Suitable for high-frequency, moderate-power systems
