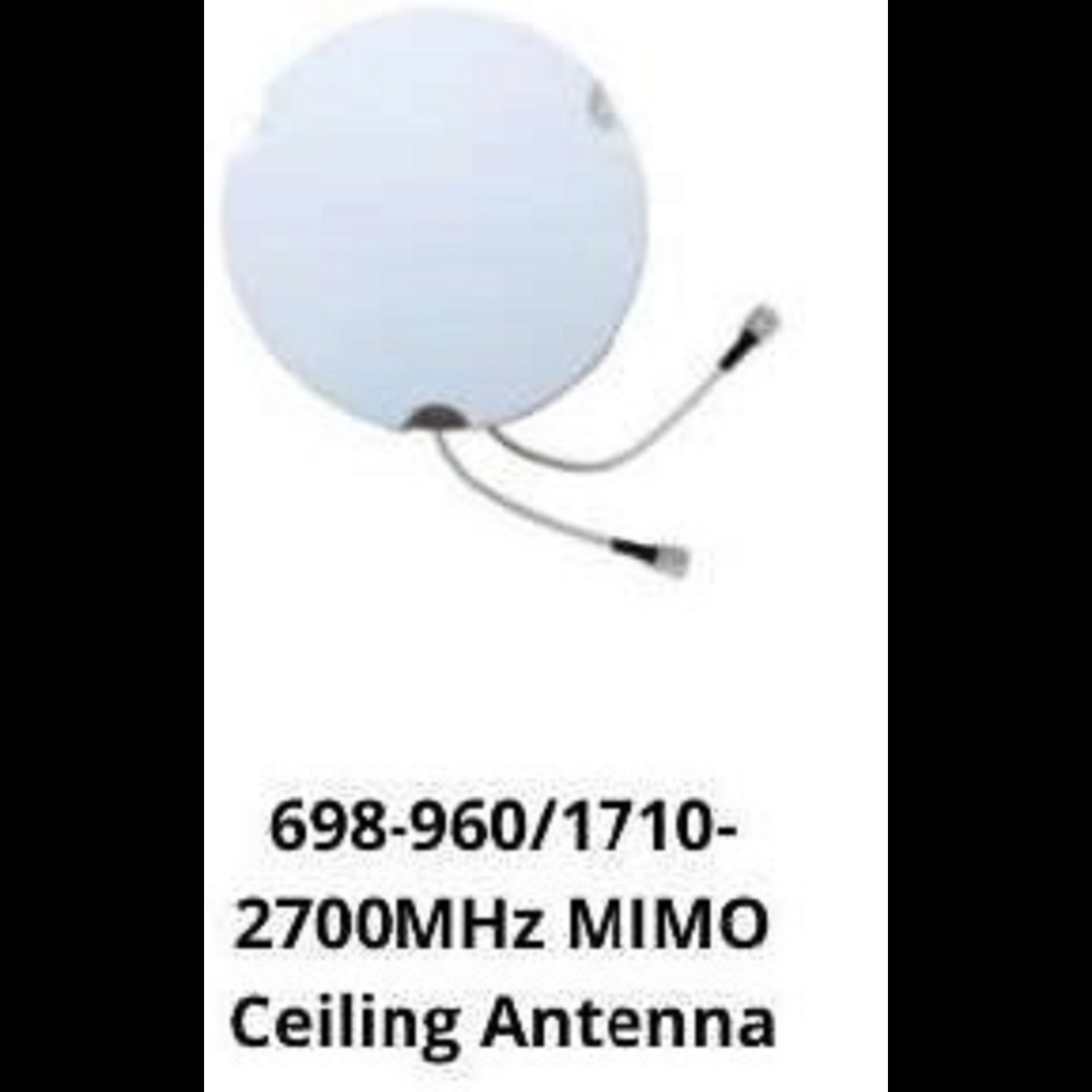

Here’s a comprehensive overview of a 698–960 / 1710–2700 MHz MIMO ceiling antenna, a go-to solution for in-building wireless systems that demand high data throughput and broad frequency support. 📡 Electrical Specifications - Frequency Bands: 698–960 MHz and 1710–2700 MHz (supports 2G, 3G, 4G/LTE) - Gain: - ~2–3 dBi (low band) - ~4–6 dBi (high band), depending on model - Polarization: Dual-linear (Horizontal/Vertical) for MIMO performance - VSWR: ≤ 2.0:1 (typical) - PIM (3rd Order): ≤ –150 dBc @ 2 × 20 W - Impedance: 50 Ω - Isolation: Better than –17 dB (low band), –20 dB (high band) - Power Handling: Up to 50 W 🛠️ Mechanical & Environmental - Radiation Pattern: Omnidirectional in azimuth - Mounting: Flush ceiling mount with screws or anchors - Connectors: Dual N-Female or 4.3/10 Female - Radome: UV-stable PC/ABS, RoHS compliant - Dimensions: ~219 mm diameter × 44 mm height - Operating Temp: –30°C to +70°C 🏢 Ideal Applications - LTE/4G/3G cellular enhancement - In-building wireless (IBW) and DAS - Wi-Fi (2.4 GHz) and IoT systems - Offices, malls, airports, hotels, and transport hubs
