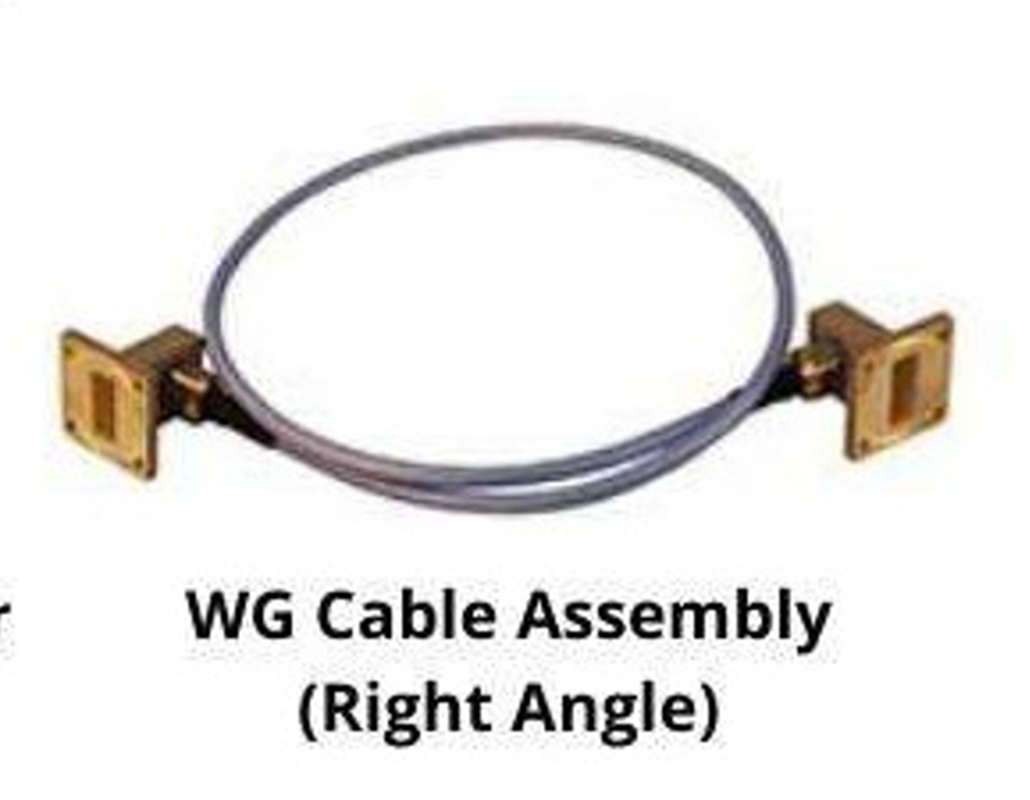

A waveguide cable assembly with a right-angle transition is a hybrid component that combines the low-loss benefits of rigid waveguides with the flexibility of coaxial cables—ideal for tight spaces or modular setups in high-frequency systems. 🔹 Typical Specs: - Waveguide type: WR-10 to WR-75 (depending on frequency band) - Connector: SMA, 2.92 mm, or 1.0 mm (right-angle) - Cable: Semi-rigid or flexible coax (e.g., RG-405, UT-085) - VSWR: ≤ 1.3:1 - Insertion loss: < 0.5 dB (varies with length and frequency) - Flange: UG-387/U or custom - Material: Gold-plated brass or aluminum waveguide, stainless steel connector
