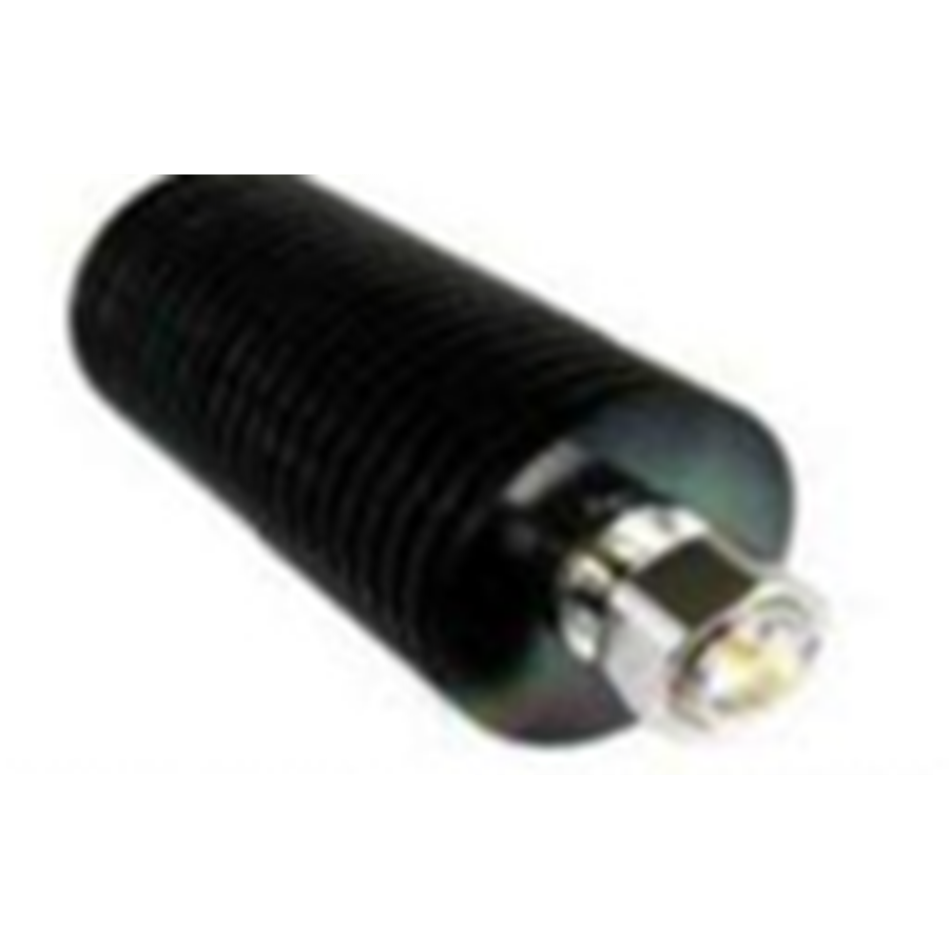

A Low PIM 50 Watt DIN female dummy termination load is a high-performance RF component designed to terminate unused 50-ohm ports in systems where signal integrity and intermodulation suppression are critical—such as DAS, BTS, and LTE/5G networks. 🔧 Key Specifications (based on the SRFS-50-03-DINF model): - Power Rating: 50 watts average, with peak handling up to 100 watts (5 μs) - Frequency Range: DC to 3 GHz - Impedance: 50 ohms - VSWR: ≤ 1.20:1 for excellent impedance matching - PIM Performance: ≤ -105 dBc @ 2×43 dBm - Connector: 7/16 DIN female - Construction: Brass body with tri-metal plating, silver-plated BeCu contact, and PTFE dielectric - Environmental Range: -65°C to +85°C, 5–95% relative humidity - Compliance: RoHS compliant 🛠️ Applications: This load is ideal for terminating unused ports in high-power, multi-carrier RF systems where even minor reflections or intermodulation products can degrade performance. It’s commonly used in telecom infrastructure, RF test benches, and antenna port terminations.
