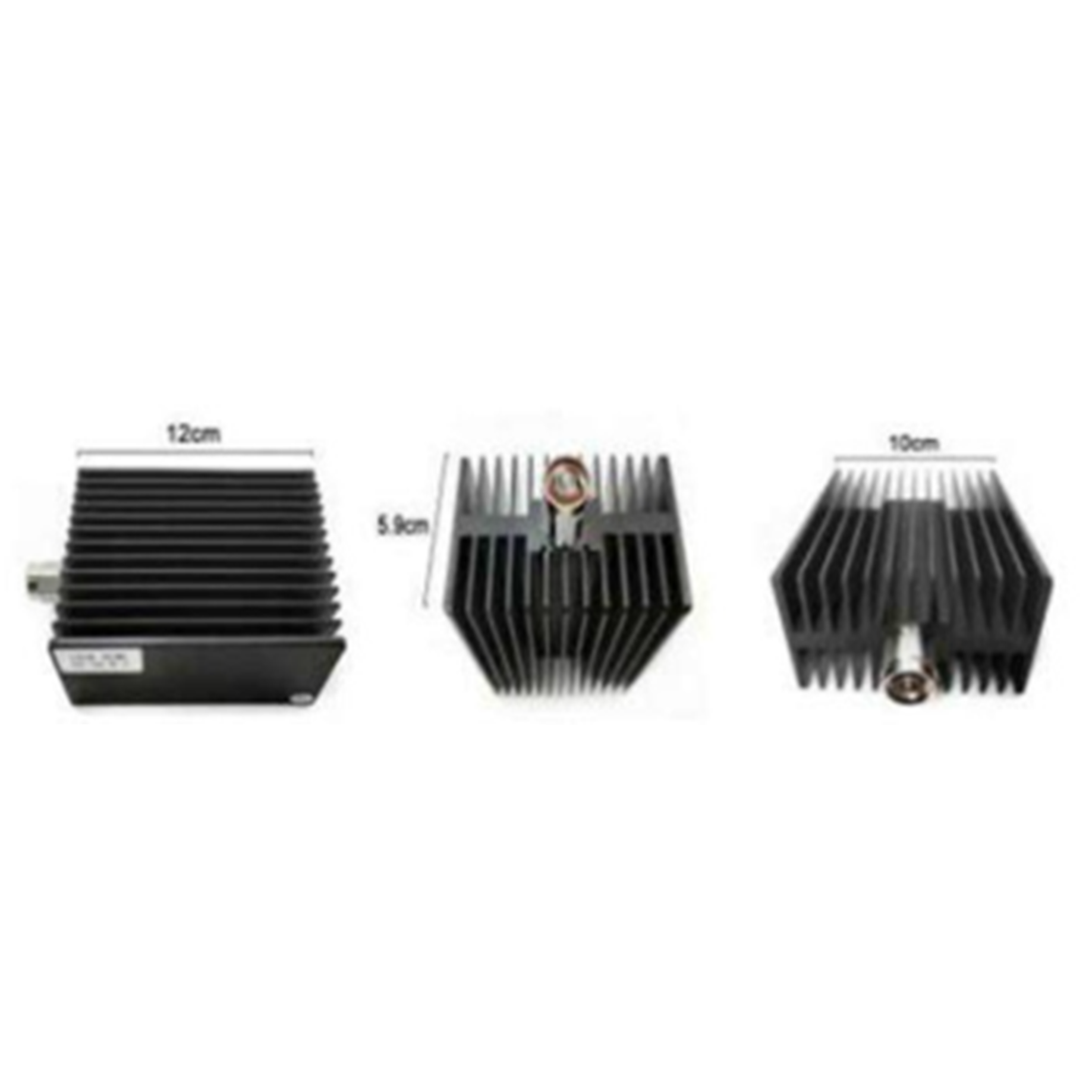

A Low PIM 100 Watt DIN male dummy termination load is a rugged, high-performance RF component designed to terminate unused 50-ohm ports in systems where signal integrity and intermodulation suppression are critical—such as DAS, BTS, and LTE/5G networks. 🔧 Key Specifications (based on models like the MECA LPT100-DM and Maniron MNDL-100-4-DM): - Power Rating: 100 watts average, with peak handling up to 2.5 kW (short bursts) - Frequency Range: DC to 3 or 4 GHz - Impedance: 50 ohms - VSWR: ≤ 1.20:1 (typical), ensuring excellent impedance matching - PIM Performance: ≤ -165 dBc (typical), ideal for multi-carrier environments - Connector: 7/16 DIN male (threaded, robust, and weather-resistant) - Construction: - Body: Aluminum or brass with black anodized or ternary alloy plating - Contact: Silver- or gold-plated beryllium copper - Insulator: PTFE (virgin electrical grade) - Environmental Range: -55°C to +85°C, with humidity tolerance up to 95% - Weight: ~10.5 lbs (for convection-cooled models) 🛠️ Applications: This load is ideal for terminating high-power RF ports in telecom infrastructure, test benches, and antenna systems where even minor intermodulation products can degrade performance. Its robust build and low PIM rating make it suitable for both indoor and outdoor deployments.
