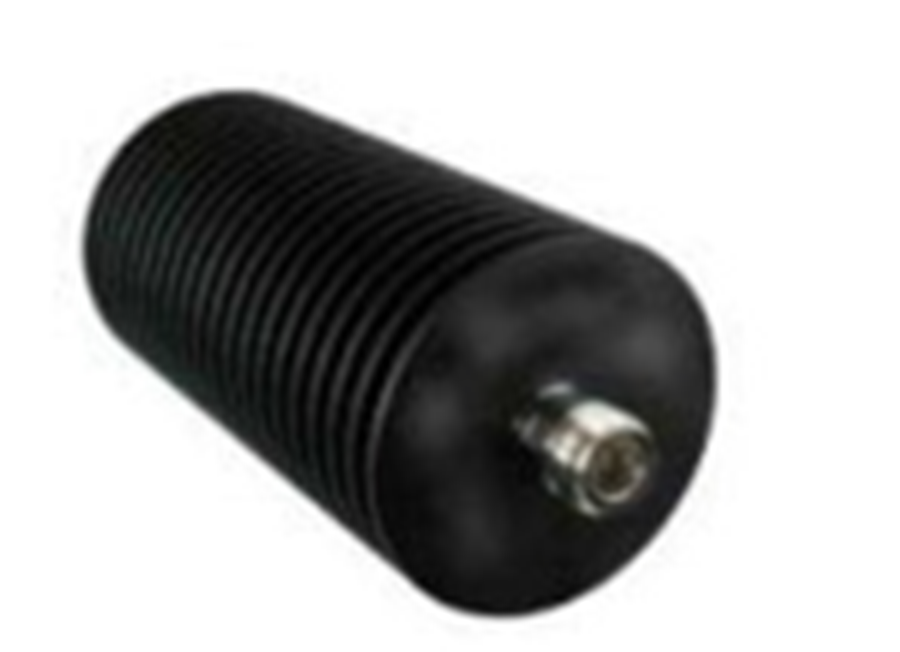

A Low PIM 100 Watt DIN female dummy termination load is a high-performance RF component engineered to terminate unused 50-ohm ports in demanding multi-carrier systems such as DAS, BTS, and LTE/5G networks. It ensures minimal signal reflection and suppresses passive intermodulation (PIM), which is crucial for maintaining signal clarity in high-density RF environments. 🔧 Key Specifications (based on the SRFS-100-04-DIN F model): - Power Rating: 100 watts average, with peak handling up to 100 watts (5 μs) - Frequency Range: DC to 4 GHz - Impedance: 50 ohms - VSWR: ≤ 1.20:1 for excellent impedance matching - PIM Performance: ≤ -105 dBc @ 2×43 dBm - Connector: 7/16 DIN female - Construction: Brass body with ternary alloy plating, gold-plated brass contact, PTFE dielectric - Environmental Range: -65°C to +85°C, 5–95% relative humidity - Compliance: RoHS compliant 🛠️ Applications: This load is ideal for terminating high-power RF ports in telecom infrastructure, test benches, and antenna systems where even minor intermodulation products can degrade performance. Its rugged build and low PIM rating make it suitable for both indoor and outdoor deployments.
