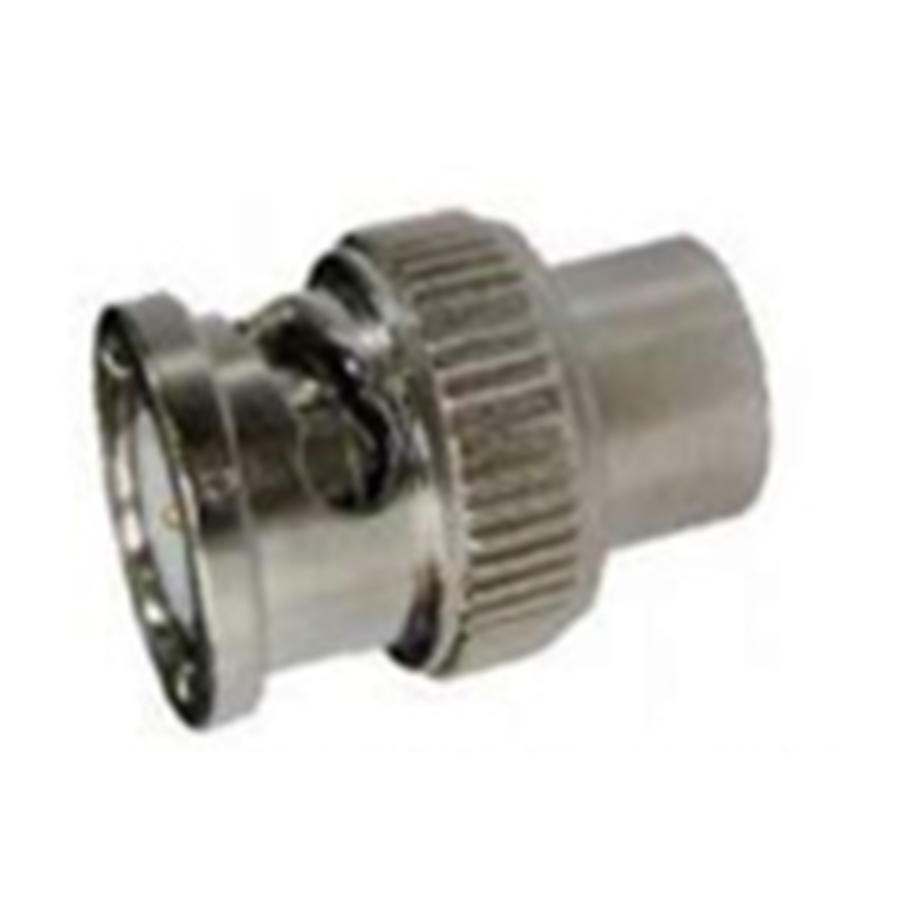

A 1-watt BNC male dummy load is a compact RF termination device used to safely absorb radio frequency energy in low-power systems. It’s designed to simulate a 50-ohm load, allowing RF equipment to operate without radiating signals or causing reflections that could damage sensitive components. This type of dummy load typically operates from DC up to 3 GHz, making it suitable for a wide range of applications including signal testing, antenna tuning, and system calibration. The BNC male connector ensures quick and secure connections with standard RF test equipment or coaxial cables. 🔧 Key characteristics: - Power rating: 1 watt average, with peak handling up to 100 watts for short durations (e.g., 5 μs) - Frequency range: DC to 3 GHz - VSWR: ≤ 1.20:1 for excellent impedance matching - Impedance: 50 ohms - Construction: Brass body with nickel plating, PTFE insulator, and gold-plated inner conductor - Operating temperature: -65°C to +85°C These dummy loads are essential in RF labs and field kits, especially when testing transmitters without connecting to an antenna. They’re also handy for terminating unused ports in multi-port systems to prevent signal reflections.
