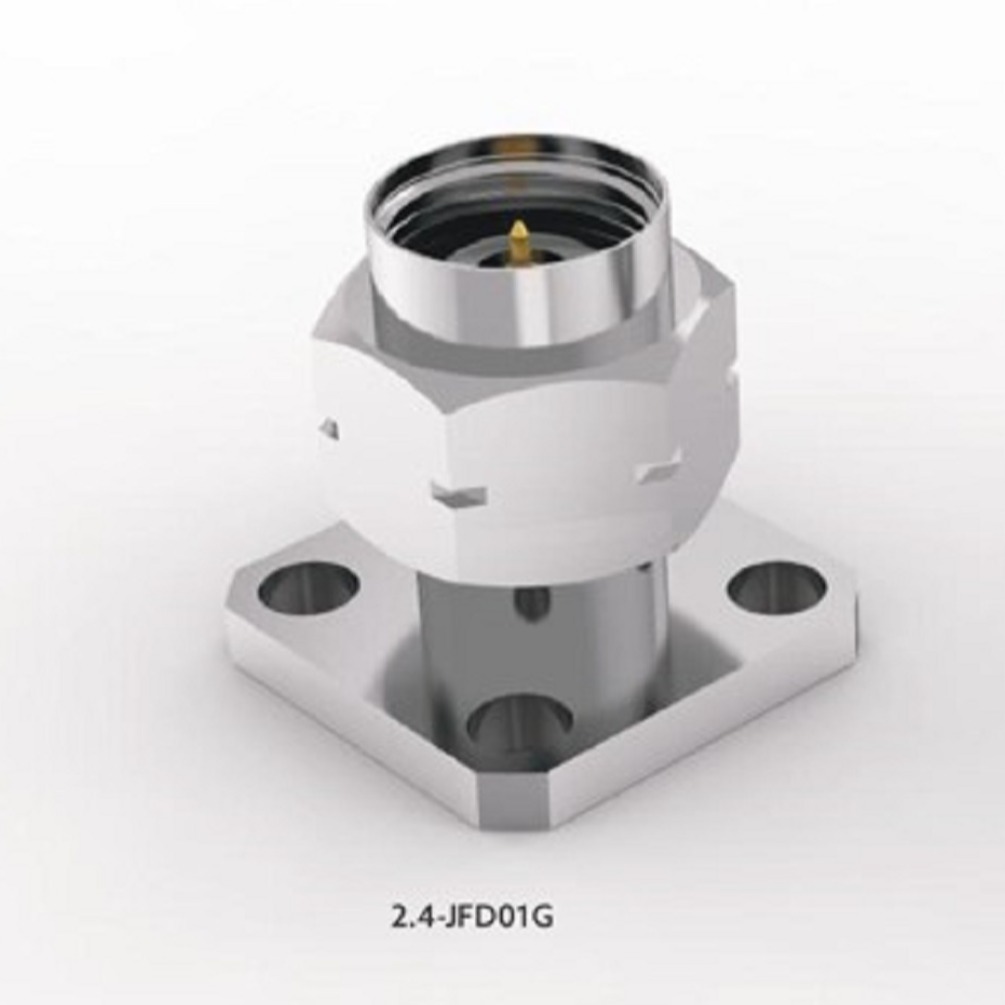

The 2.4 mm male 4-hole connector is a precision, 50 Ω coaxial interface — a male “plug” designed for panel-mounting (via a 4-hole flange). It provides a robust, repeatable connection for high-frequency RF/microwave signals up to 40 GHz. BRAND - RF CONNECTOR HOUSE PRICE - INR 6000 Impedance: 50 Ω Frequency range: DC → 40 GHz VSWR (max): ≤ 1.20 (typical) Contact resistance (centre): ≤ 3 mΩ Contact resistance (outer) / housing: ≤ 2 mΩ Insulation resistance: ≥ ~1000 MΩ Withstanding voltage (typical): ~500–750 Vrms (sea level) Durability / mating cycles: ≥ 500 cycles Connector body material: Stainless steel Insulator / dielectric: PTFE Mounting style: 4-hole flange Website - www.rfconnector.in
