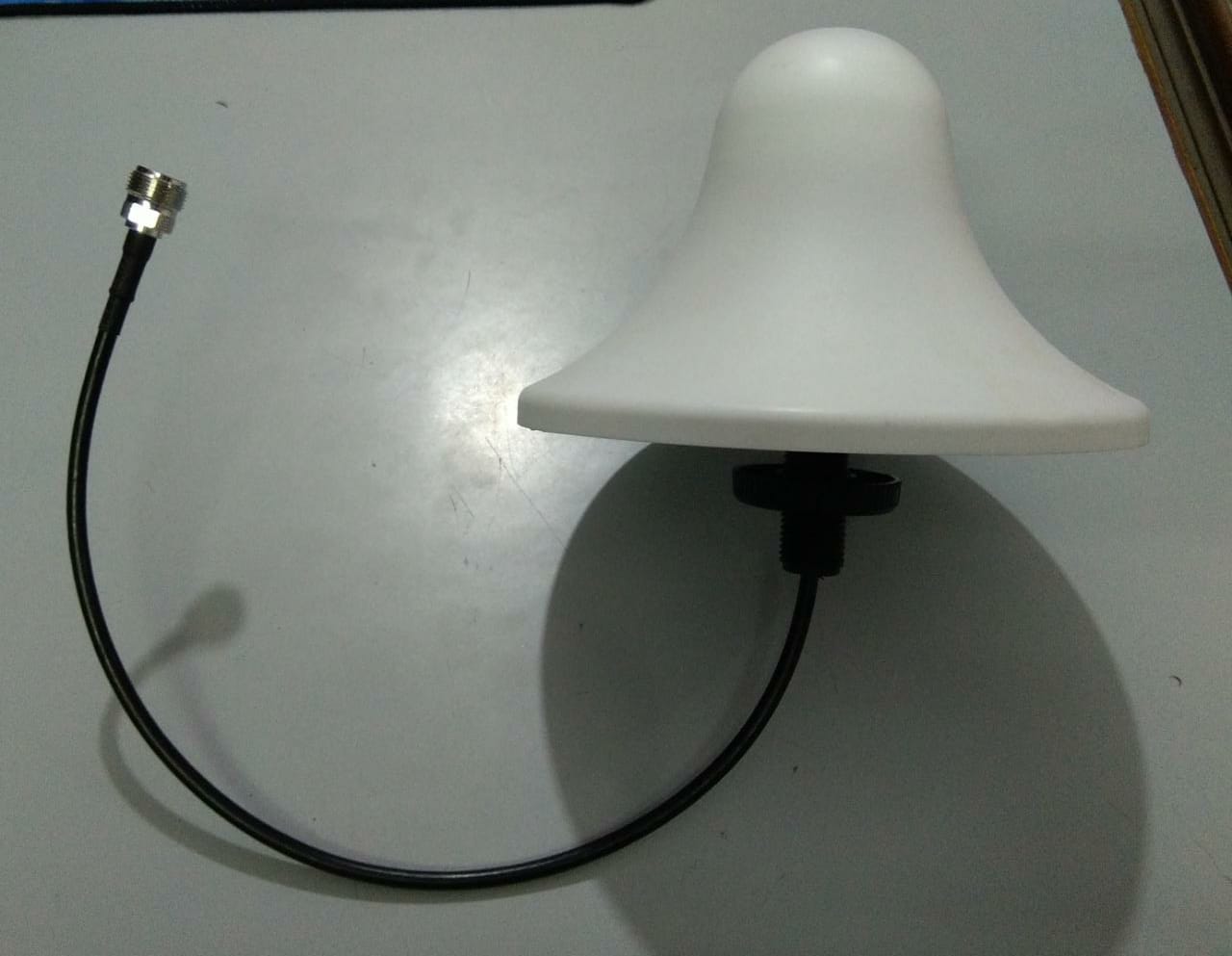

2-4dbi Omni Antenna: Electrical Specifications Item Frequency Range MHz 700 -960/1710-2700 Gain dBi 2/5 Polarization Vertical Beam width Horizontal deg 360 Vertical 60/30 VSWR ≤1.5 PIM, @33dBm dBc ≤-150 Un-roundness dB ±2 Maximum input power w 50 Lightning protection DC Ground Impedance Ω 50 Mechanical Specification Connector Type N-female Connector position Bottom Size (mm) Φ185×85 Packing Size (mm) 150×150×190 Antenna Weight kg 0.4 Packing Weight kg 0.45 Wind loading area m2 ≤0.2 Rated wind velocity m/s 36.9 Operational Temperature oC -40～55 Reflector Material Aluminum Radome material ABS Radome Color White
